NEW!! P216 tri color  11.25" Large single channel Bargraph meter
with 5 digit LED display.
A Form and Fit Replacement for the Hayes Republic 216 Draft Gauge and Drum Level Indicator



The Precision Instrument Company's new P216 is a form and fit replacement, tri-color bargraph, for the Hayes Republic 216, Ametek-Dixson BK051 and BT071 as well as some Weschler Instruments BD-101 series units. The P216 comes with a full 5 digit numeric display and has optional 9-36VDC or 90-265VAC / 110-370VDC power input. Signal inputs can be Serial RS485, Analog VDC and resistance to include strain-gauge, thermocouple, RTD, Potentiometer and 4-20mADC current, True RMS and Frequency (Hz). Outputs are optional and include 4 each, 5 amp rated form A relays and a 16 bit isolated analog output with 0-20mA or -10VDC to +10VDC, both of which are scale able as desired.

Follow this link for the P216 data sheet







P180-0 tri color  6 inch single channel edgewise Bargraph meter
with 5 digit LED display








P180-0, a form and fit replacement for the GE 180 edgewise meter and other industry standard 6 inch edgewise meters. This bargraph meter has a 51 segment tri-color LED bargraph with a full 5 digit LED numeric display. DC or AC power input options and several DC signal inputs and outputs are available.
Follow this link for the P180 data sheet



P180-1 tri color  6 inch single channel edgewise Bargraph meter
with 5 digit LED display








P180-1, a form and fit replacement for the GE 180 edgewise meter and other industry standard 6 inch edgewise meters. This bargraph meter has a 101 segment tri-color LED bargraph with a full 5 digit LED numeric display. DC or AC power input options and several DC signal inputs and outputs are available.
Follow this link for the P180 data sheet



P180-2 tri color  6 inch dual channel edgewise Bargraph meter
with 5 digit LED display








P180-2, a dual channel form and fit replacement for the GE 180 edgewise meter and other industry standard 6 inch edgewise meters. This bargraph meter has two 51 segment tri-color LED bargraph with two full 5 digit LED numeric displays. DC or AC power input options and several DC signal inputs and outputs are available.
Follow this link for the P180 data sheet





P180-3 tri color  6 inch dual channel edgewise Bargraph meter
with 5 digit LED display








P180-3, a dual channel form and fit replacement for the GE 180 edgewise meter and other industry standard 6 inch edgewise meters. This bargraph meter has a dual 101 segment tri-color LED bargraph with two full 5 digit LED numeric display. DC or AC power input options and several DC signal inputs and outputs are available.
Follow this link for the P180 data sheet





PB40 tri color  ANSI Switchboard Bargraph meter with 5 digit LED display



PB40, a single channel form and fit replacement for the GE DB40 switchboard meter and other industry standard 4 1/2 inch switchboard meters. This bargraph meter has a 101 segment tri-color LED bargraph with a full 5 digit LED numeric display. DC or AC power input options and several DC signal inputs and outputs are available.
Follow this link for the PB40 data sheet







P350 tri color  Ruggedized Bargraph Meter replacement for Moore Products 350
Vertigage and Fischer Porter controller

P350 Vertical Bargraph is now available in a single or dual display configuration with either a 51 segment or 101 segment automatic tri-color bargraph. The input features a fully field programmable 24 bit A/D converter with support for all DC type signals and resistive sensors as well. Thermocouple, RTD, Milli-volts to 300 Volts DC and current from 0-1 Milli-amp to 3 amps DC. Power includes universal 90-265VAC or 9-32 VDC, fully isolated. Optional outputs have 4 relays rated at 5 amps each and a 16 bit analog output of voltage or current.
Follow this link for the P350 data sheet











P9224 tri color  2.25" square Ruggedized Bargraph meter
with 4 digit LED display




P9224, a form and fit replacement for the Prime Technologies 9224 display. The circular bargraph display has a 101 segment automatic tri-color bargraph and is available as a single 270 degree sweep or a single 170 degree sweep from about 12 o'clock to 6 o'clock. The fully programmable color zone ranges, Isolated RS232c, RS422 or RS485 serial communications provide for maximum system flexibility while maintaining low cost of ownership. More information to be released soon
Follow this link for the P9224 data sheet









Please note the below units are not recommended for new designs
due to a pending obsolescence



PK tri color  Bargraph meter with 4 digit LED display

Edgewise LED bargraph meterEdgewise Tri-Color LED bargraph displayLED bargraph replacement for Moore Products

PK vertical bargraph display has a 51 segment automatic tri-color bargraph display and is available as single or dual channel. The fully programmable color zone ranges, multi channel input capability, optional relay outputs, analog outputs and RS232c, RS422 or RS485 serial communications provide for maximum system flexibility while maintaining low cost of ownership. Industry standard analog input of 4-20mADC, 1-5VDC, 0-10VDC, RMS Volts / Amps, RTD and Thermocouples Available. Power inputs of 10-32VDC or 90-265VAC, 10 Amp relay outputs, 4-20mADC retransmission and external loop power enhance the overall performance of the unit. Popular replacement for the older Moore Products displays.





PBS ANSI size Switchboard  Bargraph meter with 6 digit LED display

ANSI size Switchboard  Bargraph meter with 6 digit LED display

Tri-Color circular bargraph replacement for GE DB 40 and Dixson BTW71 and BW051

Tri-Color circular bargraph replacement for Yokogawa DB 40 and Weschler BG series

PBS Bargraph Display with its automatic programmable tri-color bargraph replaces GE / Yokogawa "DB-40" style switchboard meters, Dixson's model BTW71 / BW051, Weschler BG series and other similar instruments. The bargraph display can be configured to change colors at your predetermined points or can be configured as a single color graph.  The scale plate marking is 0-100% standard with special scale plates available to fit your particular requirements.  The 101 segment Bargraph display provides 1% resolution while the 6 digit numeric display provides 0.001% resolution.  The numeric display is also programmable to show from 1 to 6 digits so if your operators are trained to use only 4 digits of accuracy you can set this up for them.  This unit is a very popular replacement for the GE DB40, Dixson BW051 , BW051P and similar Yokogawa, Westinghouse and Weschler instruments.



P23 ANSI size Switchboard  Bargraph meter with 6 digit LCD display

ANSI size Switchboard  Bargraph meter with 6 digit LCD display

Tri-Color LED backlight enhances this switchboard LDC bargraph meter

101 segment LCD circular bargraph display with backlight

P23 series switchboard style LCD bargraph meter with programmable automatic tri-color backlight and full 6 digit, 0.5" tall numeric display. Multi channel input capability, available with optional relay outputs, analog output, serial RS232c, RS422 or RS485 communications and power inputs of 10-32VDC or 90-265VAC. Plastic housing is standard and a aluminum housing is optional. All housing types are NEMA 4X. This unit is a very popular replacement for the GE DB40, Dixson BW051 , BW051P and similar Yokogawa, Westinghouse and Weschler instruments.



P24 ANSI size Switchboard  Bargraph meter with 4 digit LCD display

ANSI size Switchboard  Bargraph meter with 4 digit LCD display

Replacement for Dixson BW051 and BTW71LCD replacement for DB40 analog meterP24 series switchboard style LCD bargraph Display with programmable automatic tri-color backlight and full 4 digit, 0.5" tall numeric display. Multi channel input capability, available with optional relay outputs, analog output, serial RS232c, RS422 or RS485 communications and power inputs of 10-32VDC or 90-265VAC (others on request). Plastic housing is standard and a aluminum housing is optional. All housing types are NEMA 4X rated water tight when mounted on the panel. This unit is a very popular replacement for the GE DB40, Dixson BW051 , BW051P and similar Yokogawa, Westinghouse and Weschler instruments.



P4Chessel 700 replacement11 inch tall bargraph is direct replacement for Chessel 700 series graphLED bargraph replaces Chessel 700      11 inch tall tri color  Bargraph meter with 4 digit LED display







P4 edgewise Bargraph Display replaces the obsolete Chessel 700 series of instruments. The P4 Bargraph meter comes as a single tri-color bargraph with a full 4 digit numeric display. The bargraph resolution is 2% (51 segments) and is fully programmable for color zone range, bar start & full scale value, flashing and more. The addition of the analog outputs and relay outputs allows you to sound alarms, control pumps and retransmit the signal to a PLC or DCS for remote control, data logging or secondary remote indication.  The communications port, along with our software package allows for quick and easy configuration of the unit for your particular needs. The scale plate is 0-100% standard and special scale plates are available as needed.









P6 tri color  Bargraph Display with 4 digit LED display

LED bargraph replacement for Bailey RY

Dual channel bargraph for Bailey RY replacementTri-Color LED bargraph meter

P6  vertical bargraph Meter replaces the obsolete Bailey "RY" series. Comes with a fully programmable tri-color LED bargraph and 4 digit, 0.38" numeric LED display, single or dual channels. The Multi input channel capabilities, front panel replaceable scale plate, full metal enclosure for maximum EMI/RFI protection and 10-32VDC or 90-265VAC power inputs provide total system flexibility. The 51 segment bargraph display gives you a 2% resolution and can be programmed for flashing on alarm limits and color changing. Unit is front panel mounted using the twist-lock fasteners for front panel serviceability and also available as a drop in replacement which will slide into the existing Bailey CAN without the need to change the wiring.









P7  three channel Bargraph meter with 4 digit LED displays

Bailey 775 signle, dual and triple channel replacement bargraph

Direct replacement for Bailey 775 series indicator3 channel LED bargraph meter

P7 vertical bargraph Meter replaces the obsolete Bailey "775" series. Available with a fully programmable tri-color LED bargraph Display and 4 digit, 0.38" numeric display, single, dual or triple channel. Its multi input channel capabilities, front panel replaceable scale plate, full metal enclosure for maximum EMI/RFI protection and 10-32VDC or 90-265VAC power inputs provide you with maximum system flexibility. Add the Relay outputs, analog outputs and RS232c, RS422 or RS485 serial communications for control and alarming. The 51 segment bargraph gives you 2% resolution and can be programmed for flashing on alarm limits and color changing. Unit is panel mounted using the compression fasteners for easy serviceability.









P8 Bargraph meter with 4 digit LED display replaces Foxboro 257 series

Tri-Color LED bargraph meter replaces Foxboro 257 series

Dual channel LED bargraph is direct replacement for Foxboro 257 series indicator3 channel LED bargraph display

P8 vertical bargraph Display replaces the obsolete Foxboro "257" series. Comes with a fully programmable tri-color LED bargraph and 4 digit, 0.38" numeric display, single, dual or triple channel. The multi input channel capabilities, front panel replaceable scale plate, full metal enclosure for maximum EMI/RFI protection and 10-32VDC or 90-265VAC power inputs give total system flexibility. Add the Relay outputs, analog outputs and RS232c, RS422 or RS485 serial communications for alarm monitoring and control. The 51 segment bargraph display gives you a 2% resolution and can be programmed for flashing on alarm limits and color changing. Unit is panel mounted using the compression fasteners for easy serviceability. The extended length versions include the rear seismic support hardware as on the original Foxboro models.







P9 Industry Standard tri color  Bargraph meter with 4 digit LED display

6 inch edgewise meter replacement

replacement for GE180 and Westinghouse VX251 and VX252Dual channel Tri-Color LED bargraph 6 inch meter

P9 vertical bargraph Display replaces the GE180 series as well as other standard 6" edgewise meters such as the Westinghouse VX251 and VX252, International Instruments 1151 and 1152, Dixson BB101P / BB202P and various Weschler products . Comes with a fully programmable 51 segment tri-color LED bargraph display and 4 digit, 0.38" numeric display. The single and dual channel versions are in the same size enclosure. Its multi input channel capabilities, front panel replaceable scale plate, full metal enclosure for maximum EMI/RFI protection and 10-32VDC or 90-265VAC power inputs give maximum system flexibility. Add the Relay outputs, analog outputs and RS232c, RS422 or RS485 serial communications for remote control, alarming and distribution. The 51 segment bargraph Display can be programmed for flashing on alarm limits and color changing. Unit is front panel mounted using the twist-lock fasteners for front panel serviceability.





PM Low cost Bargraph meter with 2 digit LED display

1 inch wide low cost LED bargraph display

PM series of low cost LED bargraph Displays are available in 51 or 101 segment versions. Both can be ordered as serial remote displays or single channel analog input displays and offer 5VDC, 10-32VDC or 90-265VAC power input options. Special factory configured color ranges are available on the 51 segment version while the 101 segment version is single color only.  A very close replacement for the obsolete Dixson BE051 and BE101 series however some wiring changes and panel cutout changes may be required.





PE and PS series tri color  Bargraph meter with 4 digit LED display

    Our new P series Edgewise bargraph and Switchboard bargraph displays are ideal for replacement of legacy meters from Dixson, Weschler,
GE's DB-40, GE's 180 and similar units from numerous other suppliers. The 51 segment tri color bargraph is programmed to change color upon reaching a set point if desired and the full four digit numeric display provides a 0.1% resolution. These lower cost units have been designed as display only type of units, avoiding the higher costs of adding relay output functions, analog outputs and communications. They are intended to be applied into application where no control is needed, just simple, high reliability and accurate indication of the process variable. Support inputs are low level DC voltage or current such as
0-10VDC or 4-20mADC and Isolated power inputs of 10-32VDC or 90-265VAC are available as well. Please click on pictures to the left to download our PDF datasheet and request a quote today.



P50 series 4-20mA Loop Powered LED vertical bargraph display

Brand new and low cost! 50 segment LED vertical bargraph display, only one inch wide and loop powered for those very low cost applications. The new P50 has a loop drop of only 5VDC and if this is too much for the loop to handle, you can always use external DC or AC power, just build it into the part number. The 50 segments provide a 2% resolution and the unit is NEMA 4 when mounted onto the panel with the supplied rubber gasket. Pluggable screw terminal connectors are standard and it is jumper configurable to fill the bargraph from bottom or as a moving pointer (only 1, 3 or 5 bars lit). Click on picture to download the datasheet.

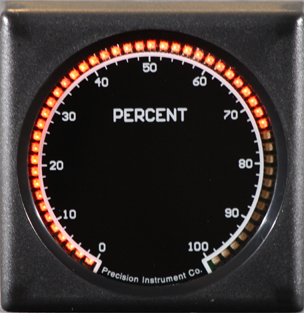

P51 series 4-20mA Loop Powered LED circular bargraph display

51 segment LED switchboard bargraph display, standard 4 1/2 inch square housing and only one inch thick. Loop powered for those very low installation cost applications. The new P51 has a loop drop of only 5VDC and if this is too much for the loop to handle, you can always use external DC or AC power, just build it into the part number. The 51 segments provide a 2% resolution and the unit is NEMA 4 when mounted onto the panel with the supplied rubber gasket. Pluggable screw terminal connectors are standard and it is jumper configurable to fill the bargraph clockwise or as a moving pointer (only 1, 3 or 5 bars lit). Click on picture to download the datasheet.



P101 series vertical LED bargraph is a drop in replacement for Ametek Dixson BE051 and BE101

After undergoing a complete transformation from our standard product offering and after numerous requests from our very loyal customers, we are very proud to introduce  the P101 vertical or horizontal bargraph display. The P101 features a 101 segment single color LED bargraph with a full four digit numeric display. The numeric is capable of displaying a full range from -9999 to 9999 and decimal points can be enabled in any of four different positions. The P101 is a full 100% form and fit replacement for the discontinued Ametek Dixson BE series. The only noticeable improvement we made was to provide a pluggable screw terminal connector instead of the clumsy and hard to deal with edge card connector. The new P101 also has 21st century technology built in. We are certain you will not be disappointed. Please click on the picture to the left to download the datasheet and contact us for a formal quote.













PD and PC Industry Standard 1/8 DIN Digital Panel Meters

FROM $189.00 EACH        1/8 DIN panel meter 1/8 DIN high performance panel meter1/8 DIN programmable counters and DPM's







PD and PC  (Click on model at left  to view data sheet)

The PD digital panel meter is an analog input high read rate display. The analog inputs of DC Volts or Amps, RMS Volts or Amps, 4-20mADC, strain gage, Thermocouple and RTD are fully scaleable to engineering units. Output options of 4-20mADC, 0-10VDC and 10 Amp relays available for control or retransmission of signal data to remote indicators or PLC's and DCS systems. A batch relay output for batch process control simplifies batch needs. The serial communications port allows for remote data logging and transmission of the signal variable and configuration. Power input of 9-36VDC or 85-265VAC compliment this devices flexibility.

The PC Digital panel meter is a pulse input counter, frequency meter, Quadrature meter, timer and clock. Additionally, the PC digital panel meter is available with a 4-20mADC input integrator for flow totals. The unit is fully configurable for input voltage levels up to 250V peak. Output options of 4-20mADC, 0-10VDC and 10 Amp relays available for control or retransmission of signal data to remote indicators or PLC's and DCS'. The serial communications port allows for remote data logging and transmission of the signal variable and configuration. Power input of 9-36VDC or 85-265VAC available as standard features.



Key Benefits

bulletOrder only the options that you need for cost savings.
bulletExtremely versatile instruments
bulletLow cost.

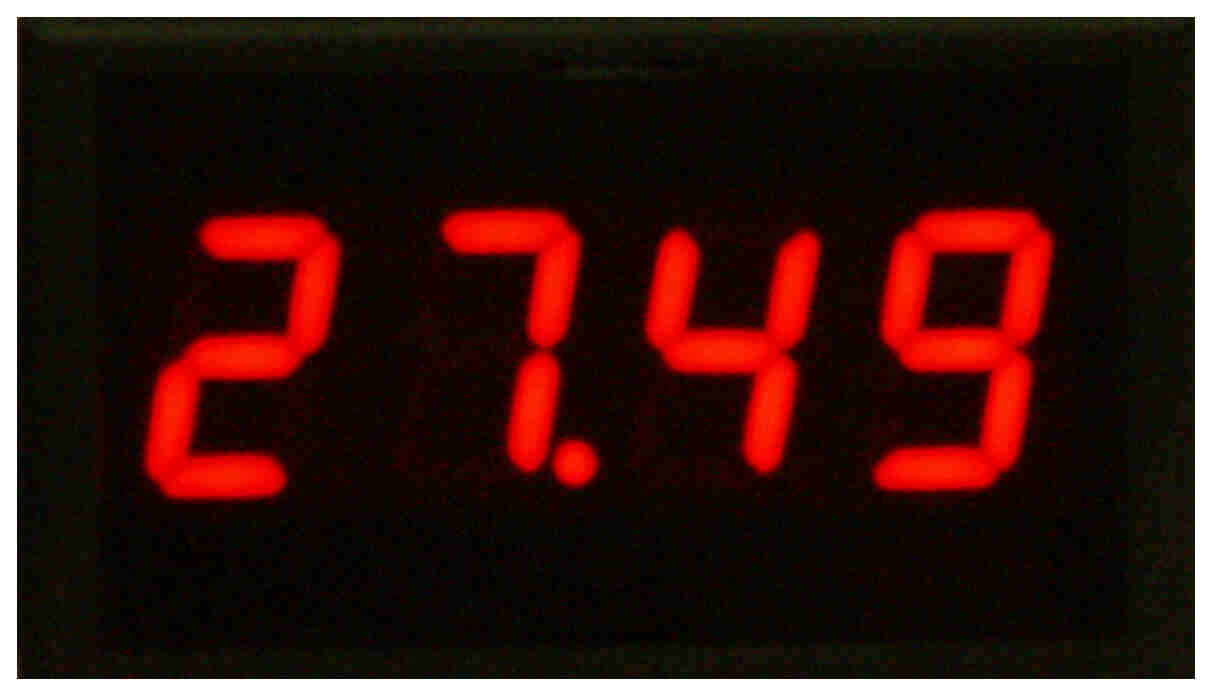

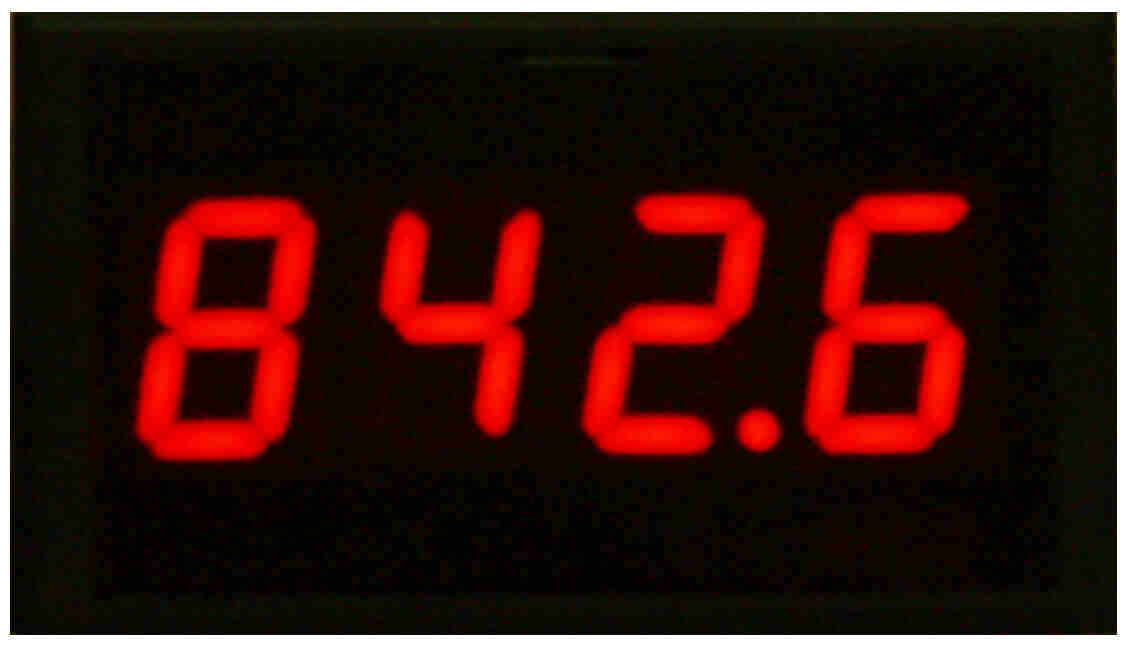

P1Serial input digital panel meter with 4 digit LED display

4 digit LED serial input remote display RS232C and RS485 input serial remote display



Click on picture to view data sheet
(requires Adobe Acrobat reader)

The P1 Digital panel meter is a low cost 4 digit serial remote display with 0.6" numerals. Available with isolated 8-32VDC power input or 5VDC power input. Communications include bi-directional RS232c or half duplex RS422 (receive only). When used as RS232c, each device echo's the received data to its transmit port, enabling you to daisy chain the devices. The RED LED display provides excellent visibility and can be dimmed through the serial port.  Also available with yellow or green digits on request. The shallow depth and screw terminal connectors make for easy installation and wiring

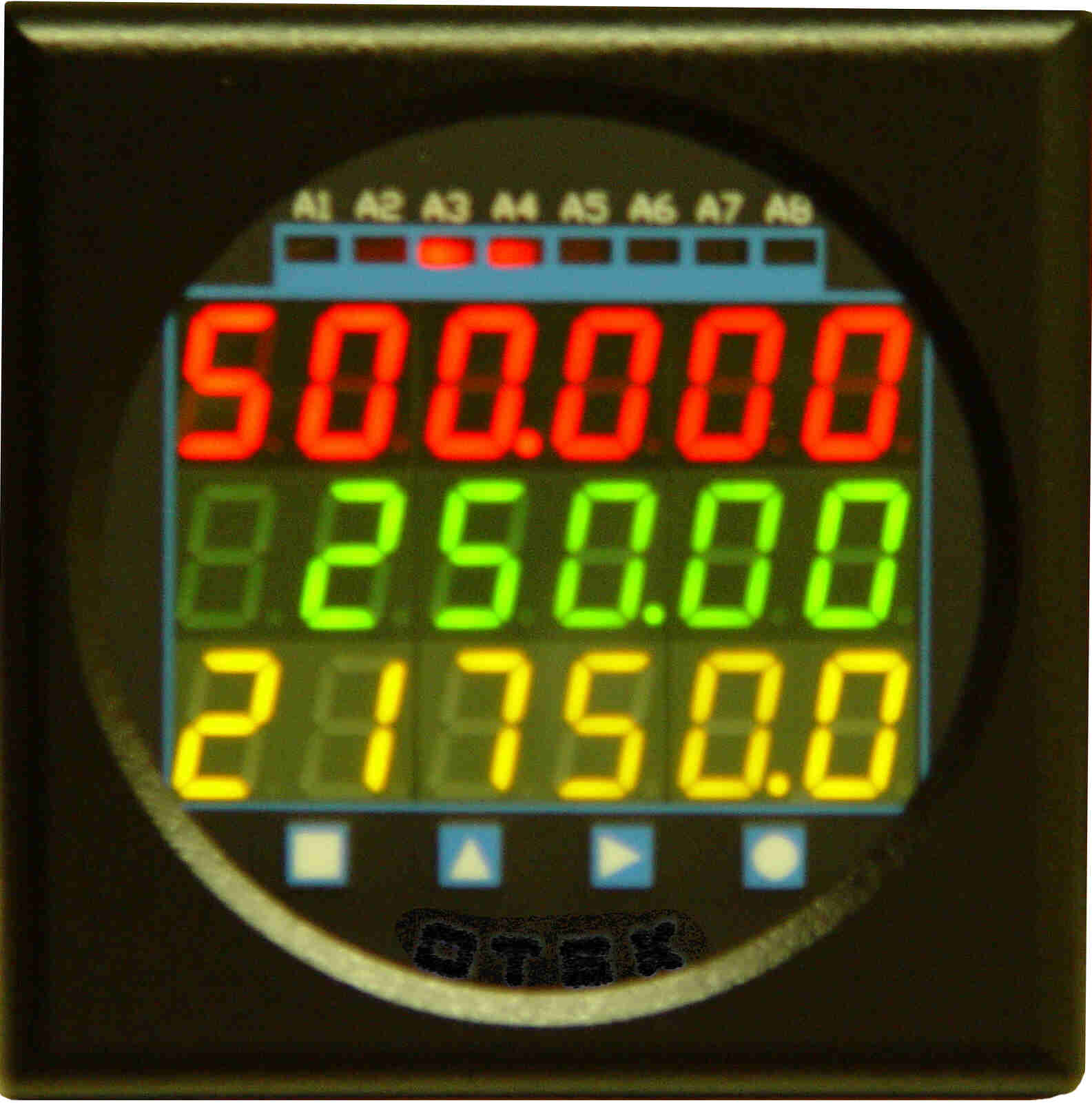

P26 Standard ANSI size digital panel meter with three 6 digit LED display

3 channel LED panel meter for serial and analog inputs




Click on picture to view data sheet
(requires Adobe Acrobat reader)

The P26 triple 6 digit LED Digital Panel Meter display is packaged in an industry standard ANSI size 4 1/2 inch housing. Use it to replace the aging 4 1/2 inch switchboard meters and gain improved accuracy, readability and add additional channels at the same time. Standard input ranges include 4-20mADC, 1-5VDC, 0-10VDC, RMS volts and Amps, thermocouple, RTD or strain gage. The unit comes standard with a serial RS232 communications port for easy set up and programming. Add the optional 10 Amp relay outputs, analog retransmission or external loop power of 24VDC for remote controlling or data logging. power inputs include isolated 10-32VDC or 90-265VAC. The Housing is plastic UL 94V-0 but an anodized aluminum housing is also available for the demanding applications. Display colors are red, green and yellow as shown however we can provide any color combination needed. Please contact our sale department for your particular needs so we can advise availability.
