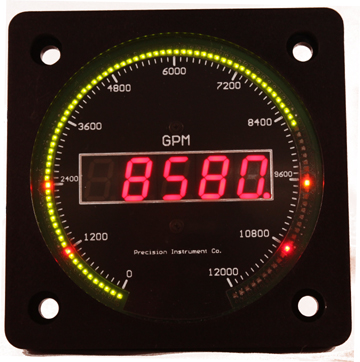

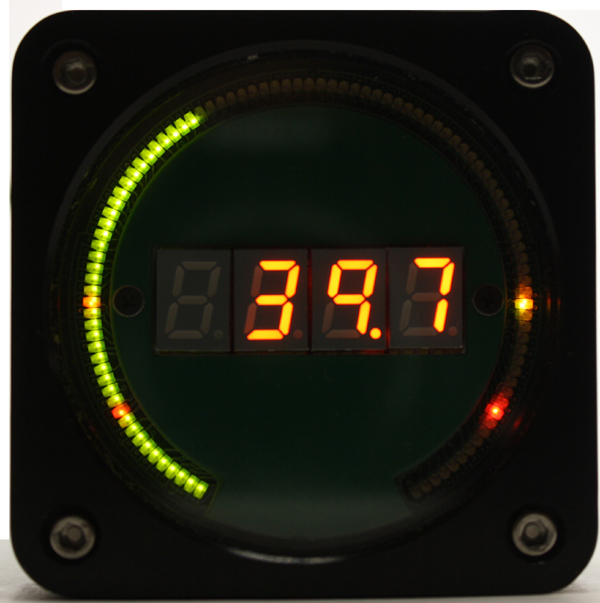

Circular tri-color bargraph display replaces DB40 style

Bargraph Meter Rugged Bargraph Boiler Drum Level Panel Meters Mil-Spec meters Users_Manuals Software

Digital Panel Meters and Serial Input Remote Displays

Precision Instrument Company, proudly made in the USA, is your best source for Rugged Bargraph Meters, Din Rail Signal Conditioners and Serial Remote Displays.  Our Rugged Bargraph Meters and Signal Conditioners are packaged in industry standard sizes for easy form factor replacement of your obsolete indicators.

bullet

·         Din rail signal conditioners

bullet

·         Din rail 4-20mA transmitter

bullet

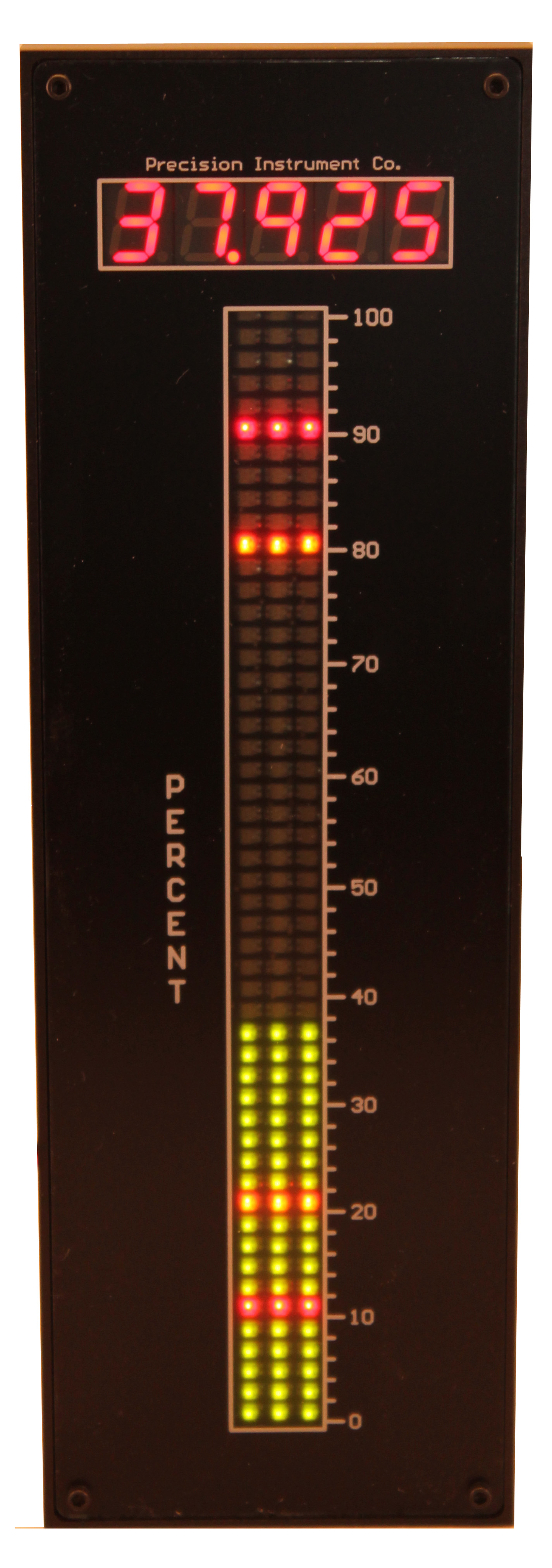

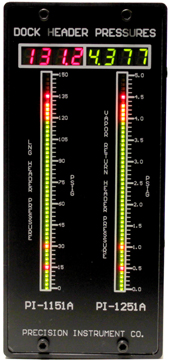

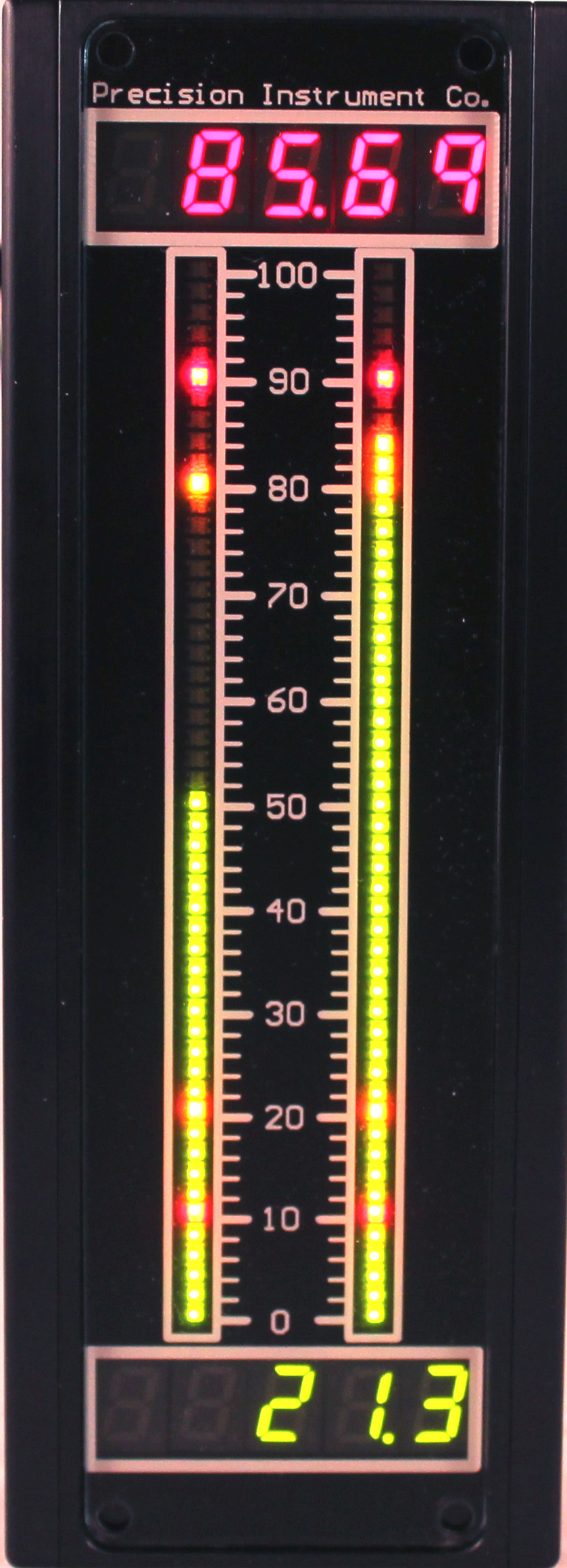

·         Standard 6 inch edgewise bargraph meter

bullet

·         ANSI standard 4 ½ inch switchboard bargraph meter

bullet

·         Remote display fully automatic, programmable tri-color bargraph meter

bullet

·         Inputs of 4-20mA, thermocouple, RTD, DC volts/amps, RMS volts/amps, resistance and frequency

bullet

·         Flexible outputs of 4-20mADC, 0-5VDC, 5 Amp relays or solid state relays

bullet

·         Serial Modbus RTU over RS485, RS232/422/485 or USB Communications

PD and PC Industry Standard 1/8 DIN Digital Panel Meters

      1/8 DIN panel meter 1/8 DIN high performance panel meter1/8 DIN programmable counters and DPM's







PD and PC  (Click on model at left  to view data sheet)

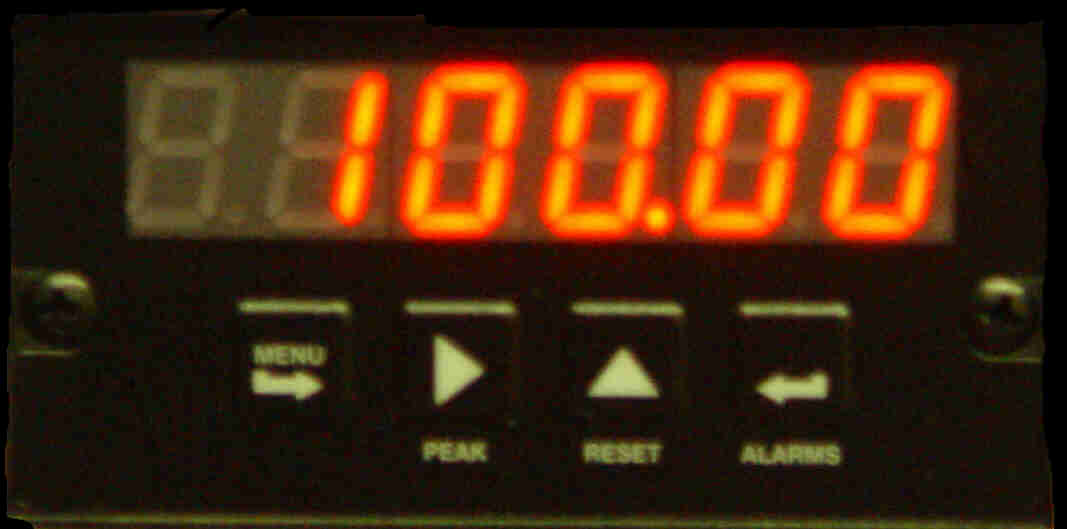

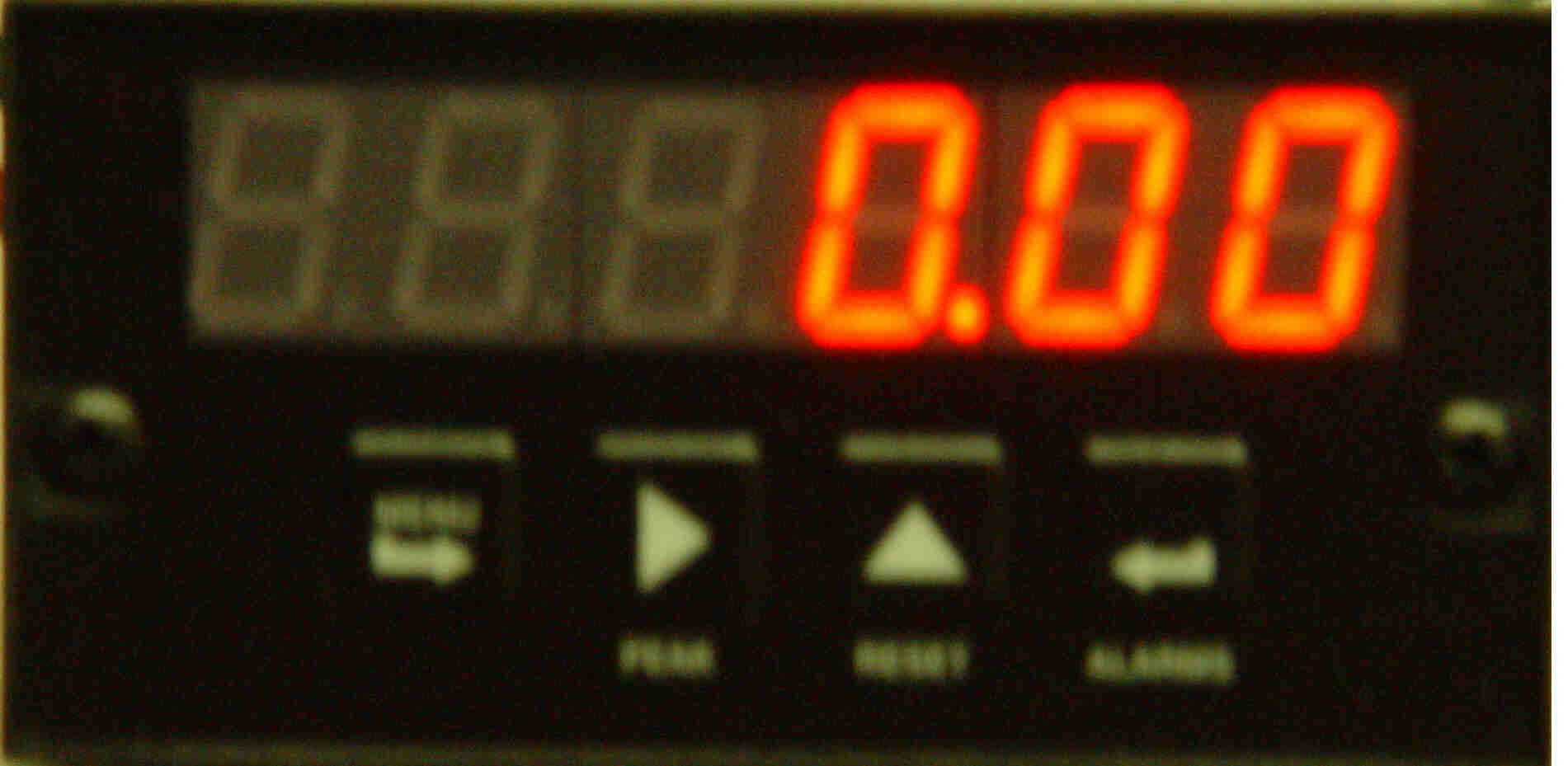

The PD digital panel meter is an analog input high read rate display. The analog inputs of DC Volts or Amps, RMS Volts or Amps, 4-20mADC, strain gage, Thermocouple and RTD are fully scaleable to engineering units. Output options of 4-20mADC, 0-10VDC and 10 Amp relays available for control or retransmission of signal data to remote indicators or PLC's and DCS systems. A batch relay output for batch process control simplifies batch needs. The serial communications port allows for remote data logging and transmission of the signal variable and configuration. Power input of 9-36VDC or 85-265VAC compliment this devices flexibility.

The PC Digital panel meter is a pulse input counter, frequency meter, Quadrature meter, timer and clock. Additionally, the PC digital panel meter is available with a 4-20mADC input integrator for flow totals. The unit is fully configurable for input voltage levels up to 250V peak. Output options of 4-20mADC, 0-10VDC and 10 Amp relays available for control or retransmission of signal data to remote indicators or PLC's and DCS'. The serial communications port allows for remote data logging and transmission of the signal variable and configuration. Power input of 9-36VDC or 85-265VAC available as standard features.



Key Benefits

bulletOrder only the options that you need for cost savings.
bulletExtremely versatile instruments
bulletLow cost.
